OHLINS:ARX 0103

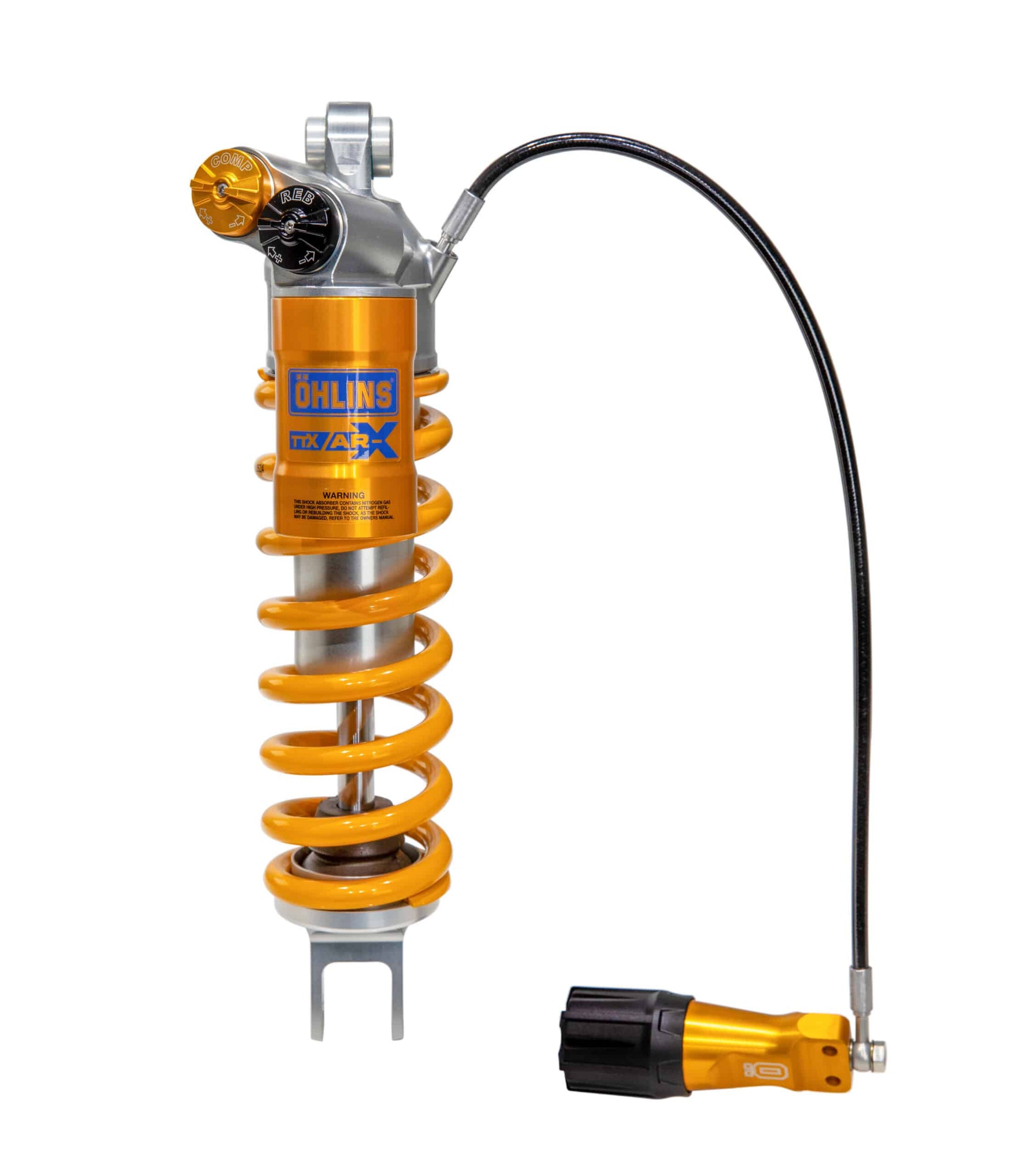

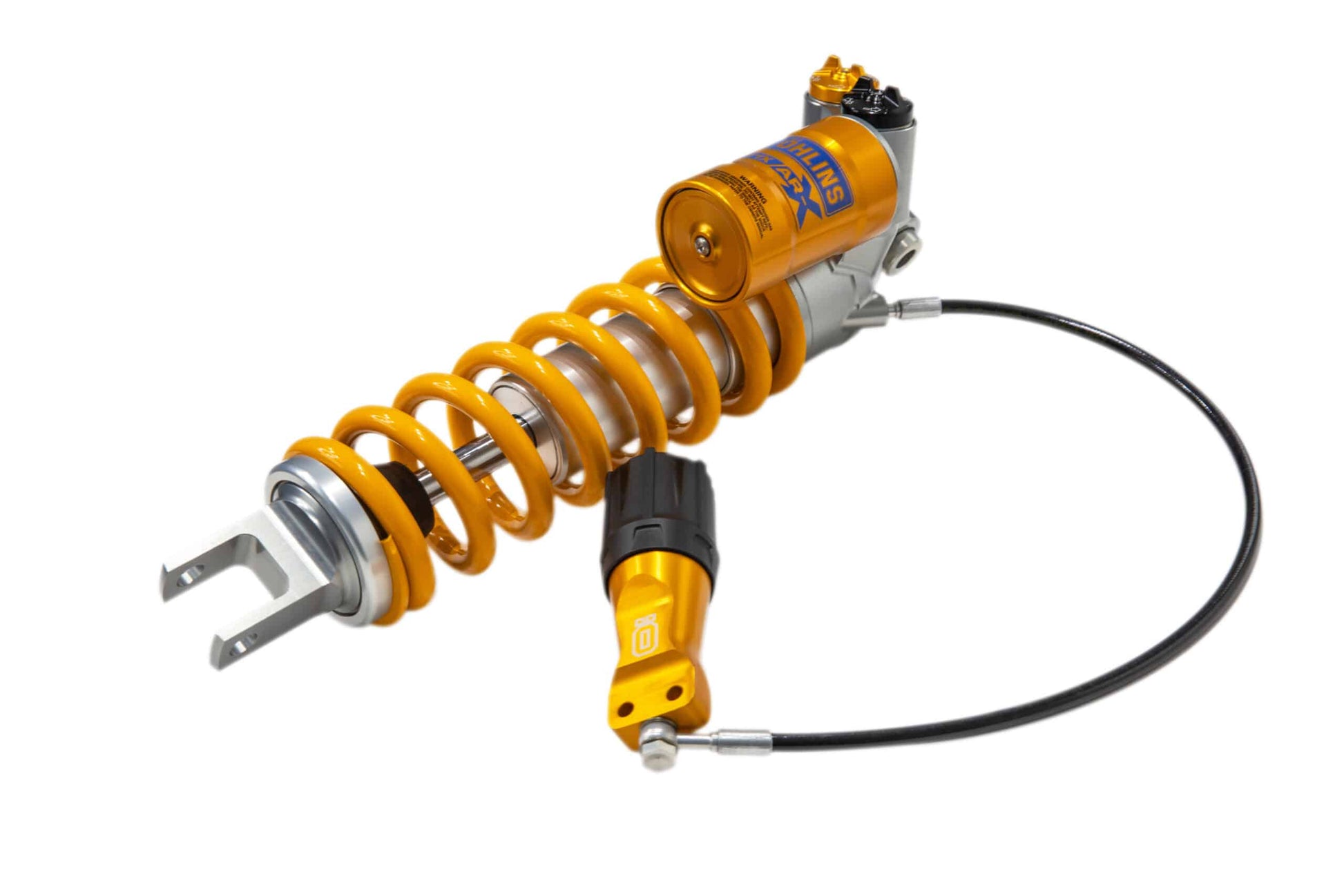

Öhlins TTX /AR-X40 shock for Yamaha Tenere 700 with Remote Hydraulic preload adjuster, 2025-on

Presenting the next-generation twin-tube rear shock absorber for adven-

ture motorcycles that provides significantly increased on-road comfort and

off-road performance. The new Öhlins TTX AR-X 40 shock also is well

suited to the higher loads and other operating demands of street and

hyper naked bikes.

TTX AR-X 40 features a 40mm (diameter) piston fitted with a high-speed

blow-off valve that increases comfort and control over an impressively

broad range of damping forces. The new shock is equipped with an

integrated hydraulic preload adjuster that keep the preferred ride height at

increased load and enables riders to increase preload at the damper by up

to 20mm, adjusting seat height by as much as 50mm, depending on the

application. The advanced preload adjuster includes an innovative modular

interface that facilitates manual or electric adjustment. The TTX AR-X 40 is

also compatible with Öhlins SmartEC semi-active suspension technology.

FEATURES

> TTX-technology

> Piston with highspeed blow-off valve

> Preload adjuster integrated in shock head

> Preload adjustment by up to 20 mm

> Increased on-road comfort and off-road performance

> Easy access compression/rebound adjusters, no tools needed.

> Optional springs available
