HD 517

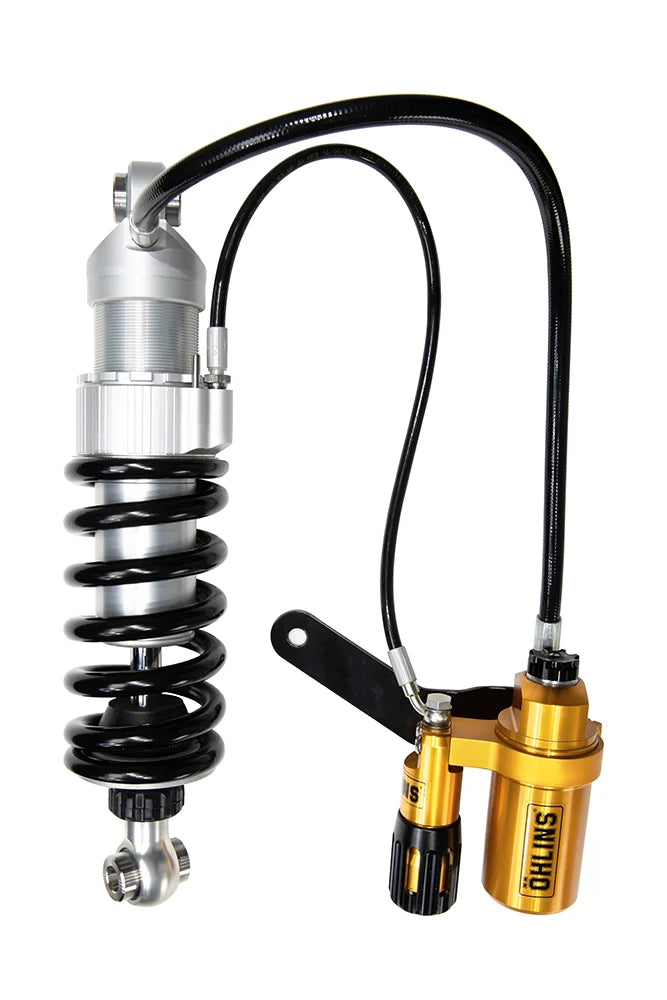

ÖHLINS AMERICAN V-TWIN STX PRO SHOCK ABSORBER FOR HARLEY-DAVIDSON SOFTAIL

Öhlins' STX46 American V-Twin shocks are made to improve the comfort and performance of your Harley-Davidson. Available in a variety of configurations, these shocks are specifically designed and tested to suit your bike model. Our Öhlins STX46 shock absorbers for Harley-Davidson are available in three performance levels: STX Classic, STX Performance, and STX Pro. Each level is designed to meet different riding styles, performance expectations, and load requirements.

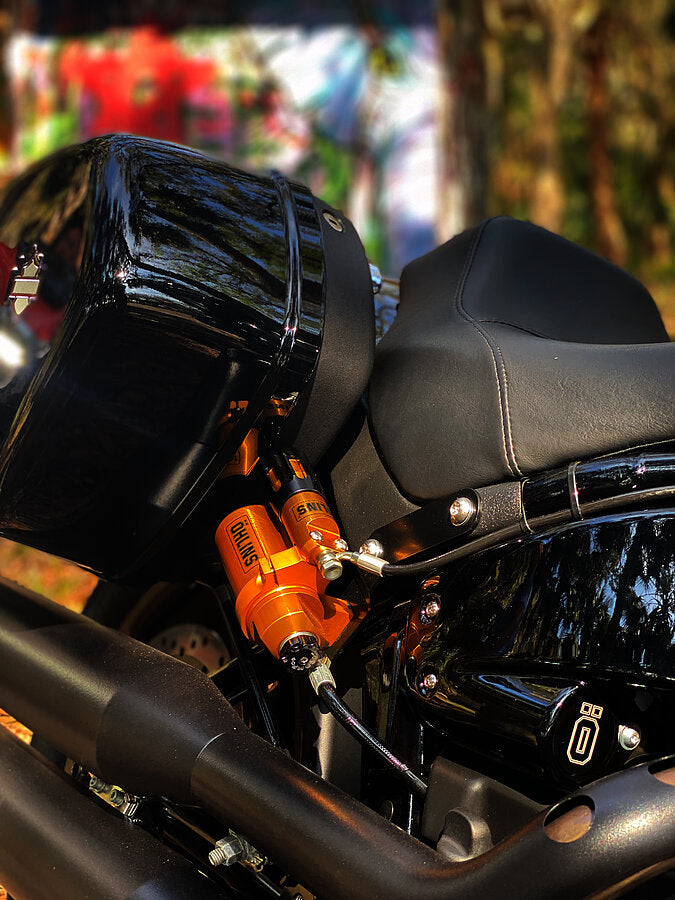

The newest addition to the STX46 Softail family is the fully adjustable STX46 American V-Twin rear shock, designed for Harley-Davidson Softail models (2018-). It features a monotube, high gas-pressurized design, with the reservoir and preload adjuster side-mounted just below the rider's seat on the right side. A Harley-Davidson side cover (part no. 54000321) is required if one is not already installed, as it provides better clearance for the hoses. A black lid is included to cover the hole in this cover where the OE preload adjuster is located.

With fully adjustable damping, you can tailor the rebound and compression damping behavior of the shock to match your riding style. The side-mounted hydraulic preload adjuster allows for easy spring preload adjustments to compensate for changes in rider and cargo weight, no extra tools required.

Features

• STX single-tube design
• Monotube shock with side-mounted reservoir
• High-pressure nitrogen gas-charged
• 46 mm piston diameter
• Adjustable rebound and compression damping
• Hydraulic preload adjuster with remote handle
• Multiple spring rates available to accommodate a wide range of riders
• Top-level comfort, rideability, and performance
• Hard-anodized precision CNC-machined components
• Low-friction shaft and seal head design
• Fully serviceable and repairable
